Crimped Wire Mesh Seieves Coarse Wire Mesh for Mining

Product Categories
Anping yuanfengrun net products Co., Ltd
Contact Now

Crimped Wire Mesh Seieves Coarse Wire Mesh for Mining

  • 1
  • 2

Brand Name : Qijie

Model Number : Crimped Wire Mesh

Certification : Crimped Wire Mesh

Place of Origin : China

MOQ : 10pcs

Payment Terms : L/C, T/T

Supply Ability : 1000rolls/month

Delivery Time : 15-18days

Packaging Details : wood case

Aperture : 25mm

Application : Security Screen

Color : Silver

Features : High Strength, Corrosion Resistance

Length : 15m

Material : aluminum

wire diameter : 2mm

Contact Now

Crimped Wire Mesh Seieves Coarse Wire Mesh for Mining

This page provides information on a special stainless steel wire mesh for specific use - printing screen. With properties, uses and features.

A kind of ultra-thin woven stainless steel wire mesh with uniform opening and good firmness. The uses of carefully selected special stainless alloy materials and the most advanced weaving technology adopted ensure the very compact weaving structure is achieved and the thickness of the wire mesh is within the allowed tolerance range. Hence the precision of the wire mesh is further enhanced for high precision printing requirements.

Materials of S.S. wire mesh: SUS304, 304HC, 304L, 316, 316 L.



Crimped Wire Mesh Seieves Coarse Wire Mesh for Mining

Plain Weave Description:
Plain Weave is a kind of commonly used weaving method. The warp wire establishes the length of the wire mesh and the weft wire, paralleles to the width, crosses one another, alternates one on the top and one under and formes a 90° angle between each other.Solid woven wire mesh may have a square or rectangular opening.
Stainless steel Wire Mesh Specification
Specification List of Ultra-thin Stainless Steel Wire Mesh
Mesh/Inch Wire Dia
mm
d		 Mesh
Opening mm
w		 Opening Area
A
%		 Weight
(kg/sq.m)		 Mesh /Inch Wire Dia
mm
d		 Mesh Opening
mm
w		 Opening Area
A
%		 Weight
(kg/sq.m)
16 0.040 1.547 95% 0.013 120 0.060 0.151 51% 0.216
25 0.025 0.991 87% 0.008 130 0.043 0.152 61% 0.120
32 0.025 0.768 94% 0.010 150 0.050 0.119 50% 0.188
36 0.028 0.677 92% 0.014 150 0.028 0.141 70% 0.059
42 0.036 0.568 53% 0.027 160 0.043 0.115 53% 0.148
50 0.030 0.478 89% 0.023 160 0.035 0.123 61% 0.098
56 0.040 0.413 83% 0.045 180 0.030 0.111 62% 0.081
63 0.040 0.363 81% 0.050 200 0.036 0.091 51% 0.130
70 0.065 0.297 67% 0.148 200 0.028 0.099 61% 0.078
80 0.063 0.254 64% 0.159 220 0.026 0.089 60% 0.074
80 0.050 0.267 71% 0.10 230 0.030 0.080 53% 0.104
82 0.065 0.244 62% 0.173 250 0.030 0.072 50% 0.113
82 0.053 0.256 69% 0.115 260 0.022 0.076 60% 0.063
90 0.060 0.222 65% 0.162 280 0.025 0.066 53% 0.088
100 0.050 0.196 62% 0.125 300 0.028 0.057 45% 0.116
110 0.060 0.170 55% 0.198 325 0.025 0.053 46% 0.102

Features of Stainless Steel wire mesh:
Stainless steel wire mesh is formed from stainless steel offering good wear resistance, high strength and less technical extension. The fine wire diameter allows good ink performance; also the wire mesh screen has stable mechanical properties, chemical properties and accurate sizes. The shortcoming of stainless steel printing screen is its lack of flexibility and more expensive price. Also, the wire mesh cannot restore properly to its original forms after expansion.

Uses:
Widely used in printing of electronics, textiles, ceramics, glass and other industries, also used as filter media in aviation, aerospace, petrochemical, and other high-tech areas.

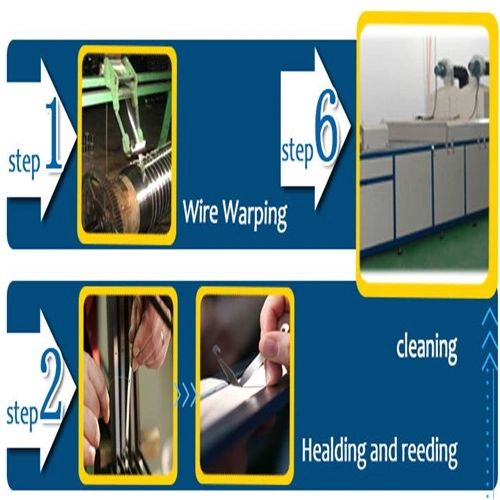

Stainless Steel Wire Mesh Manufacture Process
Crimped Wire Mesh Seieves Coarse Wire Mesh for Mining

Crimped Wire Mesh Seieves Coarse Wire Mesh for Mining


Looking for ideal Wire Mesh Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Stainless Steel Mesh are quality guaranteed. We are China Origin Factory of Ultrathin Stainless Steel Wire Cloth. If you have any question, please feel free to contact us.
